Vacuworx

Sale Price | $1,869


The global leader in innovative lifting solutions.

Since 1999, Vacuworx has been engineering and manufacturing the highest quality heavy-duty lifting equipment for the oil and gas, water and sewer, highway and heavy construction, concrete construction, landscaping and manufacturing industries

Benefits

  • Wireless remote operation is safer than hooks, slings or chains
  • Faster load and unload cycles mean less downtime for your workers
  • 360° rotation provides precise placement of materials
  • Need for fewer employees translates to lower payroll and insurance cost
  • Will not damage delicate materials and bonded coatings
  • Eliminates the need for costly cribbing or spacers for pipe and plate
  • Quick-couplers are available for attachment versatility
  • Optimal performance in cold and inclement weather conditions
  • Full inventory available for immediate purchase or rental
  • Parts, service and technical support available 24/7/365 for installation, training, repairs and troubleshooting

Applications

Vacuworx Lifting Systems can be customized for many applications and lift capacities. Standard models lift a variety of materials including:

  • Steel pipe, including most types of coating (tape, FBE, coal tar, concrete, etc.)
  • Plastic pipe (PVC, fiberglass, long flexible pipe)
  • Ductile iron pipe
  • Concrete pipe
  • Pre-cast concrete slabs
  • Pre-cast concrete culverts
  • Concrete road barriers
  • Saw cut concrete (demolition or rehabilitation)
  • Sidewalk repair
  • Landscape pavers
  • Steel plate and piling
  • Road plate

SL Series

Vacuworx SL Series

Description

The SL 2 Subcompact Vacuum Lifting System is the ultimate attachment-lightweight and extremely versatile, the system has been updated with an improved hydraulic system and modular pads to work with more machines and for more applications! Featuring all-aluminum construction, the patent pending design runs off the host machine's hydraulic system and can be easily attached in minutes to lift steel plate, saw-cut concrete, granite and marble slabs, landscape pavers and more! In addition, quick-connect hydraulic hoses make switching between attachments fast and easy so you can maximize productivity on the job. Perfect for floor, sidewalk, driveway, road and landscaping projects.

  • Available with manual or wireless remote control
  • Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine
    (minimum 10 GPM required with maximum 3,000 PSI)
  • Includes quick-connect hydraulic hoses and factory pre-set flow control valve to ensure optimal performance
  • Universal mounting plates allow easy attachment to most skid steer models
  • All system components are fabricated from high quality aluminum to maximize overal lifting capacity of the host machine
  • Innovative hydraulic design allows contractors to use the system on equipment without a case drain
  • Designed to lift concrete, marble, granite, metal, steel, iron and landscape pavers
  • Also works with a variety of mini-excavators or small cranes using clevis hook connection

LIFTER

SL 2

CAPACITY

2,700 lb (1.25 tonne)

WEIGHT

125 lb (57 kg)

DIMENSIONS

L 23" (584 mm) x H 25" (635 mm) x W 29" (737 mm)

PS Series

Vacuworx PS Series

Description

The PS 1 Portable Vacuum Lifting System is the perfect solution for smaller lifting challenges that come up daily on jobsites or in the shop. Designed for interior and exterior applications, the patent pending PS 1 can lift up to 1,700 lb (0.8 tonne) and is a great companion to small equipment such as mini skid steers, skid steers, mini excavators, forklifts and small cranes.

  • Lightweight and completely portable
  • Designed to lift concrete, marble, granite, metal, steel, iron and thick plastic materials (contact Vacuworx if materials such as glass, aluminum or thin steel are to be handled)
  • 3 ft (0.9 m) maximum lifting height recommended (intended for material handling close to the ground)
  • Powered by a 12 volt, 22 amp/hour rechargeable battery
  • 6-8 hours approximate run time
  • Ideal for applications where no power source is available

LIFTER

PS 1

CAPACITY

1,700 lb (0.8 tonne)

WEIGHT

25 lb (11 kg)

DIMENSIONS

L 14.25” (362 mm) x H 6.5” (165 mm) x W 11.5” (292 mm)

Includes 10’ vacuum hose, battery and battery charger (pad not included)

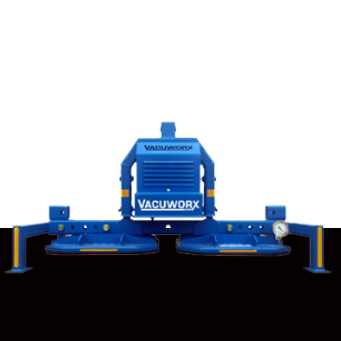

CM Series

Vacuworx CM Series

Description

The CM 3 Compact Modular Vacuum Lifting System takes skid steer attachments to a new level! Easily adaptable to multiple applications and host machines, the CM 3 features rugged all-steel construction to handle materials up to 6,600 lb (3 tonne). The first vacuum lifting solution of its kind, the patent pending CM 3 is an efficient solution to a wide variety of material handling needs, allowing larger skid steers and track loaders to safely lift concrete slabs, steel plates and pipe with ease. Available with manual or wireless remote control.

  • Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine (minimum 10 GPM required
    with maximum 3,000 psi)
  • Weighs the same as a standard bucket so there is no change in lift capacity of the host machine (with standard mounting assembly)
  • Includes quick-connect hydraulic hoses and factory pre-set flow control valve to ensure optimal performance on any host machine
  • Can accommodate single or double pad configurations to lift a variety of material weights and sizes
  • Mounting plate designed to attach quickly and easily to most skid and track steer models
  • Also compatible with small excavators and cranes using clevis hook connection
  • Removable legs for storage

LIFTER

CM 3

CAPACITY

6,600 lb (3 tonne)

WEIGHT

304 lb (138 kg)

DIMENSIONS

L 23” (584 mm) x H 25” (635 mm) x W 28” (711 mm)

Base unit includes picking eye and removeable storage legs (pad beam, pads and mounting assembly sold separately)

HL Series

Vacuworx HL Series

Description

HL Series Hydraulic Lifters are designed to improve safety, boost productivity and reduce operating expenses when moving and installing concrete road barriers up to 30 ft (9 m) long and 23,200 lb (10.5 tonne). With 360° rotation capabilities, Vacuworx hydraulic barrier lifters are perfect for maneuvering in confined spaces during road, bridge and highway applications. The lifters operate using the hydraulic system of the host machine.

  • Remote operation is safer than hooks, slings or chains
  • 360° rotation provides precise placement of materials
  • Elastomer grips provide superior performance and full surface contact without damaging materials
  • Hydraulic lock for safety will not drop barrier if hydraulic pressure is lost
  • Quick-couplers are available for attachment versatility
  • Meets or exceeds all safety requirements
  • CE certified and OSHA compliant

LIFTER

HL B1

CAPACITY

6,000 lb (2.75 tonne) / 12 ft (3.7 m)

WEIGHT

1,210 lb (549 kg)

DIMENSIONS

L 24.5” (622 mm) x H 54.5” (1,384 mm) x W 24” (610 mm)

LIFTER

HL B2

CAPACITY

23,200 lb (10.5 tonne) / 30 ft (9 m)

WEIGHT

3,360 lb (1,524 kg)

DIMENSIONS

L 106” (2,692 mm) x H 75” (1,905 mm) x W 30” (762 mm)
